Wireless Serial Communication Arduino And Processing

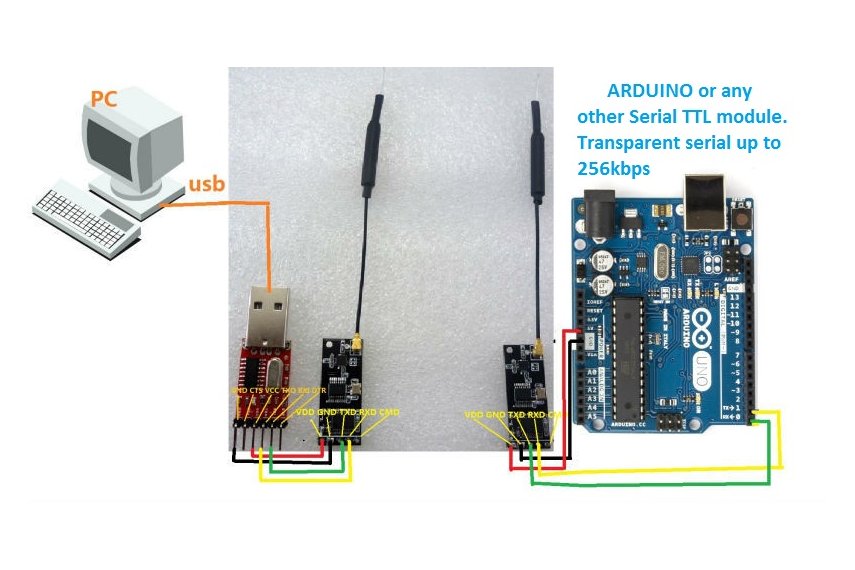

Serial ports (even wireless) are designed for point to point communication. It is possible to use in one-to many or other constellations but certaing design consideration have to be taken. My Arduino library referenced in step 5 supports one-to many. The described project is for one-way or two-way communication using (i. In this tutorial, you will read about the Arduino Processing communication. We will connect Arduino to Processing through the serial communication. Firstly, we will send data from Arduino to processing and then we will send from processing to Arduino. Processing is a language for creating graphics i.e. Media art, virtual design.
You have been given an exercise related to least cost routing.You type 21 bytes into a system. The first 9 bytes are the payload to be sent. The remaining 12 bytes are a 'routing cost' table. You have to analyse the routing cost table to determine which node should receive the payload. Sounds interesting. Let's hope that none of the parameters RN,d or u exceed 1 byte in length.If by Arduino Studio you mean the Arduino development environment, you can certainly write the code there, but to test it you also need the appropriate hardware (e.g. Arduino uno and any wireless devices you need to set up a network).
So iam able with your help to store the 21 characters in an array in the Local Node (First Arduino)what i have to do next i cant quite put it in codei have 21 characters 9 out of this will represent my student number the remaining 12 will be as follows1,x1,x2,2,x3,x4,3,x5,x6 and 4,x7,x81,2,3 an 4 are the IDS For nodes RN1,RN2, RN3 and RN4x1,x2,x3,x4,x5,x6,x7 and x8, are any numbers between 0, 9For RN1 = X1+X2 =?RN2 = X3+X4 =?RN3 = X5+X6 =? To send only the first 9 characters in the buffer to the receiver, you can do this:radio.write( receivedChars, 9 ); // send the chars 0 to 8 in the bufferThe rest of the buffer contains the routing cost information.To address for example d1 (x11 in the picture in your first post) in the buffer receivedChars, you can use receivedChars 10.
It is 10 here and not 11 because the array subscripts in C start at 0 (not 1).However, that gives you a character. To do arithmetic with it, you need it to be an integer. The conversion is like this:int d1 = receivedChars 10 - 48; // convert character representing a number '0' to '9' into an int.and carry on.int u1 = receivedChars 11 - 48;etc.once you have all the individual values, you can do the routing cost calculation.There are also more advanced ways of doing this with structs, pointer manipulation etc. Well, you could argue that the NRF24L01 already applies CRC checking to the payload so your own parity checking is not necessary.I suppose, since you are using the datatype char to represent the data and, therefore, only 7 bits are effectively in use, you could assign the chars to bytes and use the high order bit as a parity bit (set it say to 1 if there are an odd number of 1s in the remaining 7 bits, otherwise set it to 0. Check it at the other end, drop the parity bit and undo the datatype conversion.Someone testing who was only checking that a payload got from A to B would be unaware of any partiy checking, if all went well and the data arrived.
However, correctly implemented, there would be special handling of parity failures (automatic request of transmission etc.) which add significantly to the complexity.
This Instructable is intended for anyone to directly send input values read by Arduino to Processing. It is best used for passing one to several values, such as a few buttons, a joystick, or accelerometer. For mass I/O control in Processing, it is probably best to use.This sketch assumes that you have some kind of input device (like a button) hooked up to your Arduino on an Analog Input. To get things up and running quickly, hook up two buttons to Analog Inputs 0 and 1 so you can use the attached sketches as is. To begin, make sure Processing is closed, and then open the attached Arduino sketch.
Essentially, this Arduino sketch reads the incoming values on the analog ports and then uses functions to output the values. The values are separated by comma characters (denoted by quotation marks) which will be used to, or separate the values. Processing will do this work.While the sketch is excessively commented, take note of the argument to the function: this is the baud rate - in other words, the number of 'signaling events per second.' This can be modified according to your project specifications, but make sure that the rate is the same in the simultaneous Processing sketch (in my examples, the default is 9600).If you are not familiar with the second argument of the function, note that this is the base (or format) of the first argument - in this case, DEC stands for 'decimal' or a base 10. Now, leaving your Arduino program running, and the mircocontroller plugged in via USB (enabling the Serial Communication), open the attached Processing Program.
Import Processing.serial.* Arduino Error
NOTE: At this point, if you have not used the Serial library in Processing, the program may prompt you in the Debug Window (see image) to open your and run two commands. This can be dangerous, but if you follow the exact instructions in the Processing debug window, no harm will come to your computer.The attached Processing sketch is intended to explain the complex aspects so it will be useful for anyone. Aside from the essential terminal commands, the only function that may need modification is the initialization of a new Serial object (line 20 in the sketch):port = new Serial(this, Serial.list0, 9600);This creates a new object (which is an instance of a class - the fundamental building-block of, or 'Object Oriented Programming'). The second argument of the Serial.list function is the incoming port being used by your Arduino. Most users can probably use the default 0 port, but this may need to be changed if you are using a different port. The third argument is the baud rate which must match the baud rate used in the Serial.begin function of your Arduino sketch.When you are finished modifying the sketch (if it needs it), run the program with the Play button and read the values in Processing's Debug Window.
Wireless Serial Communication Arduino And Processing Tool
These values, which are stored in the cells of your array, can now be used in Processing sketches.
